Fuel Hose Fittings That Improve Fuel System Performance
A worn or mismatched fuel hose fitting costs you more than a few dollars at the parts counter. It costs you fuel pressure, engine response, and - at its worst - a fire under the hood.
Most drivers and technicians replace what's visibly broken and move on. But the fittings connecting your fuel lines are doing constant work: sealing against pressure, resisting heat cycles, and holding up against the ethanol content in today's pump fuel. When they start to fail, they rarely fail all at once. They degrade quietly - dropping pressure, seeping vapor, or cracking at the collar - until the day they finally give in.
In this guide, you'll learn which types of fuel hose fittings actually improve fuel delivery performance, how to match fittings to your application, and where the most common repair mistakes happen. Whether you're doing a quick shop repair or rebuilding a complete fuel circuit, this is the spec breakdown you need before you touch a single line.
Why the Right Fuel Hose Fitting Changes Everything
The fitting is not just a connector - it is a pressure management device.
Every time fuel travels from the tank to the injector or carburetor, it moves through a sealed circuit. Any drop in that seal - a micro-crack in a splice joiner, a loose retainer clip, a brittle O-ring - translates directly into fuel pressure loss. And fuel pressure loss is engine hesitation, poor idle, hard starts, and reduced power output.
The Society of Automotive Engineers (SAE) rates fuel hose fittings by their ability to hold pressure under temperature variation. A fitting rated for a carbureted, low-pressure system (roughly 5-10 PSI) is simply not engineered to survive inside a modern fuel-injected system running at 40-80 PSI. Using the wrong fitting in a high-pressure circuit does not just underperform - it creates a genuine safety risk.
A useful way to think about it: the fuel line is the pipe, but the fitting is the gate. A perfect pipe with a compromised gate delivers nothing reliably.
Key performance factors determined by your fittings:
- Fuel flow volume and consistency
- System pressure retention at idle and wide-open throttle
- Resistance to ethanol, methanol, and diesel degradation
- Vibration resistance over tens of thousands of engine cycles
- Ease and speed of service in a shop environment
The Shop Saver Express Fuel Lines & Fittings collection covers all of these categories - from quick disconnects for fast service work to full repair kits for damaged circuits.
Types of Fuel Hose Fittings and When to Use Each
Matching the fitting type to the job is the single most important decision in a fuel line repair.
Here is a breakdown of the main categories, what they do well, and where each one belongs in a fuel system repair.
Quick Disconnect Fittings
Quick disconnect (QD) fittings are exactly what they sound like: push-to-connect, pull-to-release connectors that lock without tools. They are standard on most production vehicles built since the mid-1980s, and they are the fittings you will encounter most often during routine service.
The key spec to watch is connection diameter. A 3/8" female QD connector is not interchangeable with a 5/16" connection - the difference is small enough to cause confusion but large enough to create a dangerous misfit.
Shop Saver Express stocks both sizes for straight runs:
- Straight Quick Disconnect Fuel Line - 3/8" Female Connection
- Straight Quick Disconnect Fuel Line - 5/16" Female Connection
For routing around tight engine bay geometry, the 90-Degree Quick Disconnect Bend Fuel Line (3/8") eliminates fuel line stress at corners without fabricating a custom bend. A kinked fuel line restricts flow in the same way a kinked garden hose does - the 90-degree fitting solves this cleanly.
Quick Connector Fuel Lines (Nylon and Rubber)
Quick connectors differ from quick disconnects in application: they bridge between different materials - nylon tubing to steel hard line, or rubber hose to steel rail fittings - usually where OEM connectors have degraded or broken.
The Nylon to Steel Quick Connector Fuel Line handles the transition between flexible nylon lines and rigid steel fittings - a common repair point on vehicles from the late 1990s through the 2010s.
For GM vehicles specifically, the GM Nylon or Rubber Quick Connector Fuel Line matches OEM connector geometry on General Motors vehicles where generic connectors often do not seat correctly.
Splice Joiners
Splice joiners are used to repair a damaged section of fuel line by bridging a cut or crack in the existing tubing. They are short-section connectors that slip over each end of the line and create a sealed joint.
Two materials matter here:
The Nylon Fuel Line Splice Joiner is rigid, chemical-resistant, and appropriate for standard fuel temperatures and pressures. Use it on nylon fuel lines in underhood environments where flex is not required.
The Rubber Fuel Line Splice Joiner provides more friction across the joint, which matters on rubber fuel lines that pass through chassis areas subject to vibration or minor movement. Rubber absorbs a lot of the vibration but requires a different fitting to maintain a good friction fit with the flexible rubber line.
A common shop mistake is using a nylon splice joiner on a rubber line. The nylon joiner holds fine under static conditions - but road vibration can fracture the joiner at the shoulder over time. Match material to the fuel line.
O-Rings and Seals
The O-ring is one of the smallest components in a fuel system and one of the most frequently overlooked in a repair. When a fitting is reseated without a fresh O-ring, you are relying on a compressed, heat-cycled seal to hold pressure it was not designed to hold again.
The Viton O-Rings Fuel Line uses Viton (a fluorocarbon elastomer) rather than standard nitrile rubber. Viton maintains its sealing integrity at temperatures up to 400 degrees Fahrenheit and resists degradation from ethanol blends, which attack standard rubber O-rings over time. This is the lowest-cost upgrade in any fuel system repair.
Save yourself a recall or refit. Always replace the O-ring when you break any fuel fitting connection.
Repair Lines with Fittings
Some fuel line repairs require more than a splice - the entire end of a steel line, including the machined fitting, needs to be replaced. This is common on sending unit connections and on lines that have corroded at the fitting collar.
The Fuel Line Sending Unit Repair Line - 3/8" Tube, 6-1/2" Length replaces the short hard line section at the tank sending unit - a high-corrosion area on older vehicles where the original line frequently rusts through at the fitting.
For metric fittings, the Steel Fitting & O-Ring Repair Line - Hex 16mm, Line Size 3/8" addresses the same need on import and European platforms where SAE thread sizes do not apply.
Full System Repair: Kits and Line Stock
For technicians doing volume fuel system work, buying individual fittings per job is the slow way.
The Fuel Line Repair Parts Assortment (86 Total Pieces) covers the most common repair fittings in a single organized unit. When a vehicle comes in with a fuel line failure and the clock is running, having the right connector in the drawer, instead of ordering it, is worth more than the kit price on the first use.
For shops replacing sections of fuel line rather than spot-repairing, Shop Saver Express carries two line options:
-
Nylon Fuel Line - 25 Feet - appropriate for low-to-mid pressure circuits, flexible, and chemical-resistant
-

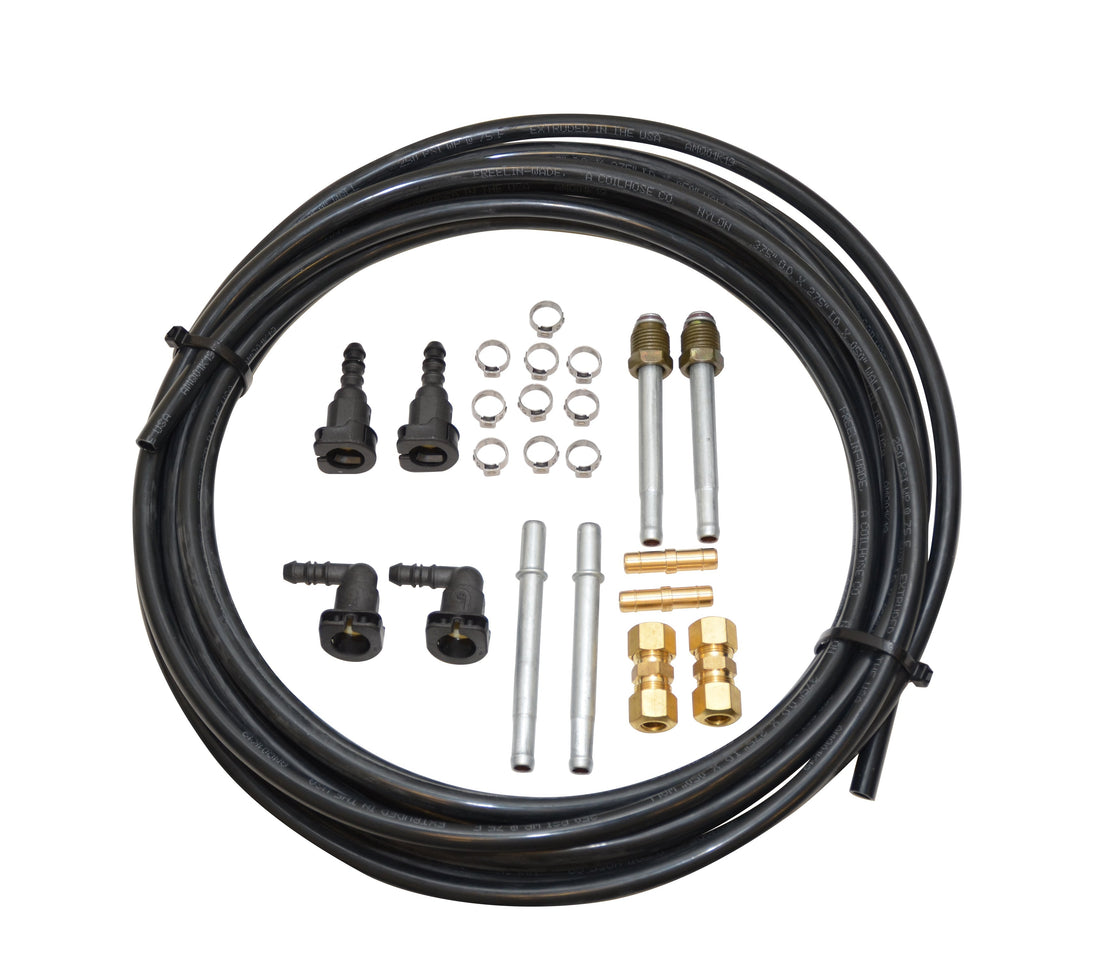

3/8" Fuel Line Repair Kit - 25ft Durable Fit includes fittings and line for a complete circuit repair
The Three Fitting Mistakes That Kill Fuel System Performance
Getting the fitting right is half installation. Avoiding these errors is the other half.
Mistake 1: Ignoring diameter matching. A fitting that almost fits is not a fit. Fuel line connections that are even fractionally undersized will not seat their retainer clip correctly - and will fail under pressure or vibration. Always confirm the line OD (outer diameter) before selecting a connector.
Mistake 2: Reusing O-rings. Every time a fuel fitting is disconnected and reconnected without a fresh Viton O-ring, you are introducing a potential leak point. The cost of a replacement O-ring is fractions of a dollar. The cost of a fuel leak - in shop liability, diagnostic time, and rework - can be avoided with a single buck.
Mistake 3: Using rigid splice joiners on flex sections. This comes up most in underbody repairs where a technician substitutes a nylon joiner on a section of line that runs near suspension or exhaust components. The joiner cracks. The repair fails. Use rubber splice joiners wherever the line has any dynamic load.
How to Choose the Right Fitting for Your Application
Ask these three questions before selecting any fuel hose fitting:
1. What is the line pressure? Carbureted systems run 5-10 PSI. Throttle body injection runs 10-18 PSI. Port fuel injection runs 40-60 PSI. Direct injection can exceed 80 PSI. The fitting must be rated at or above the maximum system operating pressure.
2. What material is the existing line? Nylon, rubber, and steel each require different connector types. A connector designed for a rubber line will not create a reliable seal on rigid nylon tubing.
3. What is the fuel composition? Standard 87-93 octane pump fuel with up to 10% ethanol (E10) is compatible with most modern fittings. E85 (85% ethanol) is chemically aggressive and requires fittings and line materials specifically rated for alcohol fuels - standard rubber fittings will swell and fail.
If you work across a variety of makes and models, the Shop Saver Express 86-piece repair assortment provides coverage across the most common combinations without requiring per-job sourcing.
Shop the Full Fuel Lines & Fittings Collection
Every product referenced in this guide is available at Shop Saver Express - Fuel Lines & Fittings. The collection is organized by fitting type - quick disconnects, connectors, splice joiners, repair lines, and full kits - so you can locate the right part without searching through unrelated inventory.
If you service vehicles professionally and want to talk through volume pricing on repair assortments or line stock, contact our expert team directly at +1 (888) 773 2772.
Start with the right fitting. Everything downstream depends on it.
