Fuel Line Connectors: The Complete Guide to Leak-Free Performance
A fuel leak under a vehicle is not an inconvenience; it’s a fire hazard. Yet every day, techs and DIYers reach for the wrong connector, skip the O-ring check, or guess a line size. The result is a callback, a comeback, or worse.
The wrong fuel line connector does not just fail. It fails near an ignition source.
If you are repairing a damaged nylon run, replacing a corroded steel hard line, or building out a shop inventory for quick turnarounds, this guide covers every connector type you will encounter and exactly which product to reach for.
By the end, you will know how to match a connector to a line, avoid the three most common installation mistakes, and get the repair done right the first time.
What Are Fuel Line Connectors and Why Choosing the Right Size Matters?
A fuel line connector is a fitting, joiner, or coupling creating a sealed junction between two sections of fuel line or between a fuel line and a system component like a fuel pump, filter, or sending unit.
Get the match wrong and the seal fails under pressure.
Modern vehicles run fuel systems at 40 to 60 PSI for port-injected engines and up to 200 PSI on direct injection platforms. That pressure does not forgive a loose barb, a worn O-ring, or a mismatched line diameter. A connector holding at idle can weep or blow at wide-open throttle, often after the vehicle has left the bay.
Three variables determine connector selection every time:
- Line material: nylon, rubber, or steel hard line
- Line diameter: most commonly 1/4", 5/16", or 3/8" on domestic vehicles
- Connection geometry: straight through, 90-degree bend, or splice/union
Get all three right and the repair holds. Miss one, and you are back under the hood.
Types of Fuel Line Connectors: A Practical Breakdown
Quick Disconnect Fittings
Quick disconnect fittings, also called quick-connect fuel line connectors, are the most common connectors found on late-model domestic vehicles. They snap onto a barbed nipple on the fuel component, lock into place with an internal retainer ring, and sealed by one or two O-rings inside the fitting body.
The audible click when you push a quick-connect home is reassuring, but it’s not the confirmation you should rely on. The correct verification is a firm pull-back test: grab the fitting and tug with 15 to 30 lbs of force. If it moves, it’s not locked.
Shop Saver Express stocks both configurations:
The 90-degree bend variant was specifically designed for routing around chassis obstructions or firewall pass-throughs where a straight connector creates a kink point in the line. If the original routing uses a bend, replace it with a bend; running a straight connector and forcing the line into a curve is how you create a stress fracture six months later.
Quick Connector Fuel Lines (Nylon-to-Steel and GM Applications)
Where the vehicle transitions from a nylon fuel line to a steel hard line (or vice versa), you will need a dedicated quick connector. These are not interchangeable with standard quick disconnects. The body diameter and retainer geometry differ by application.
For GM vehicles specifically, the connector body dimensions follow GM's proprietary specifications, which is why incorrect fittings frequently fail to seat correctly. This is one of the most common causes of repeat-repair fuel line complaints.
Shop Saver Express carries application-specific options:
When stocking for a variety of vehicles, having both on the shelf eliminates a parts run mid-repair.
Splice Joiners
A splice joiner, sometimes called a union or barbed union, is when you need to bridge a section of cut or damaged fuel line. Two barbed ends press into the existing line on either side of the cut, secured by friction and, in higher-pressure vehicle systems, clamps.
The material of the joiner matters. Nylon joiners are lighter and resist corrosion but require careful installation to ensure the fuel line is fitted firmly over all the barbs on the joiner, fitting it all the way past the last available barb. Rubber joiners offer slightly more flexibility with movement, which is useful in routing areas that experience vibration.
Nylon joiners are the most cost-effective component in any fuel line repair kit, and the one part shops most frequently run out of during a busy service day.
Compression Unions and 360-Degree Seal Unions
Compression unions are primarily for steel hard lines where a flared connection is not practical or the line corroded at a union point. The fitting compresses around the outside of the tube as you tighten the nut, creating a mechanical seal without flaring.
360-degree seal compression unions take this further: the seal contacts the full circumference of the tube, which is what you need when the line is subject to vibration or thermal cycling. High-mileage vehicles, trucks, and fleet vehicles are where you’ll use these most often.
Repair Lines and Steel Fitting Assemblies
When the damaged section includes the fitting itself (not just the line), a repair line provides a pre-assembled solution with the fitting already attached. This is ideal for sending unit connections, where the geometry of the fitting is as critical as the line size.
Pre-assembled repair lines eliminate one of the most common field errors: installing a new connector onto a tube end with the old O-ring seated inside it. The old ring doubles up with the new one, creates an uneven seating surface, and the "repaired" line leaks on the first start-up.
Choosing the Right Fuel Line for Your Repair
The connector is only half the equation. The fuel line itself needs to match before any fitting goes on.
Nylon Fuel Line
Nylon is the dominant material in modern OEM fuel systems and usually the go-to choice for most vehicles built after the mid-1990s. It resists fuel permeation, holds its shape under pressure, and doesn’t soften with heat the way rubber does.
25-foot Nylon Fuel Line in multiple diameters offers enough length to handle most repairs with material left over for the next job.
Fuel Line Repair Kits

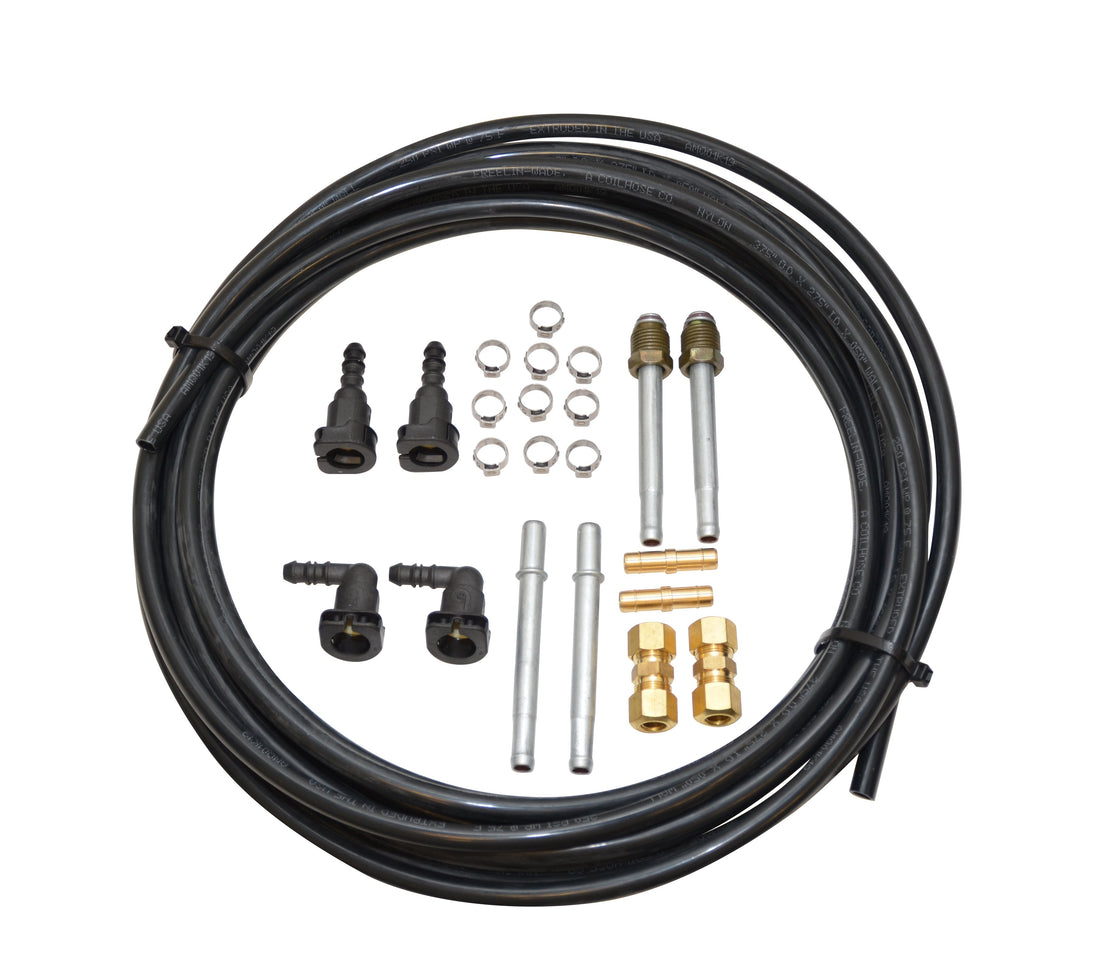

For shops who handle regular fuel system work, a complete repair kit eliminates time spent sourcing individual components. The kits from Shop Saver Express bundle 25 feet of fuel line with fittings needed for a complete repair:
A single 3/8" repair kit covers multiple repairs compared to sourcing a pre-made OEM line assembly for one vehicle and can run $150 to $300 or more.
The 86-Piece Repair Parts Assortment
For repair facilities managing a rotating fleet or high volume, the Fuel Line Repair Parts Assortment (86 Total Pieces) is a better value than stocking individual components piecemeal. It covers the full range of repair scenarios - splice joiners, quick connectors, compression unions, and clamps - in a single organized case.
Consider it a toolbox investment rather than a parts purchase. The carrying case alone saves meaningful time during a fuel system diagnostic when you need to match a fitting size quickly.
Three Installation Mistakes That Cause Leaks
Mistake 1: Skipping the O-ring inspection before reconnecting. Quick-connect fittings use internal O-rings that harden, crack, or flatten over time. A connector that looks intact on the outside can have a compromised O-ring not holding pressure. Always inspect the O-ring and replace it when in doubt. Viton O-Rings for Fuel Line are available individually at low cost, which is a negligible cost relative to a customer returning for a fix.
Viton is a fluoroelastomer offering significantly better fuel resistance than standard rubber, particularly with ethanol-blended fuels now standard at most pumps. It is the correct O-ring material for any fuel system.
Mistake 2: Using the wrong barb size on a nylon line. A barb too small for the line ID (inner diameter) will not grip adequately, no matter how many clamps you add. The barb needs to create an interference fit with the line wall. When in doubt, size up slightly and allow the material to compress around the fitting, DO NOT heat the nylon line with an open flame to stretch it.
Mistake 3: Confirming a quick-connect by sound alone. A click can signal a locked quick-connect fitting, but not confirmation. Always perform the manual pull-back test before closing up the repair. Start the engine, pressurize the system, and inspect visually before returning the vehicle.
Keeping Your Shop Stocked: What to Have on the Shelf
Ordering parts as jobs come in adds unnecessary delays to what should be a straightforward repair. Fuel line connector repairs are time-sensitive: a vehicle with a leaking fuel line cannot wait two days for parts.
Here is a practical stocking guide for a general repair shop:
| Component | Size | Product |
|---|---|---|
| Straight Quick Disconnect | 5/16" | View Product |
| Straight Quick Disconnect | 3/8" | View Product |
| 90-Degree Quick Disconnect | 3/8" | View Product |
| Nylon Splice Joiner | Multi-size | View Product |
| Rubber Splice Joiner | Multi-size | View Product |
| Sending Unit Repair Line | 3/8" | View Product |
| Viton O-Rings | 3/8" and 5/16" | View Product |
| Nylon Fuel Line | 25ft roll | View Product |
If your volume does not justify individual component stocking, the 86-piece assortment eliminates the guesswork and the shelf space management in a single purchase.
Conclusion: The Right Connector, the First Time
Fuel line connector repairs are not complex, but they require the right parts. A $0.20 O-ring or a $2 quick disconnect done correctly prevents a leak, a fire risk, and a customer returning. With the wrong component, the same repair costs far more in time, trust, and liability than the original job was worth.
Browse the full Fuel Lines and Fittings collection at Shop Saver Express and stock the connectors your shop needs before the next fuel system job rolls in.
