High-Pressure Fuel Line Repair Kits: The Upgrade Your Vehicle Actually Needs
You smell gasoline before you even open the garage door.
That faint fuel odor is not a minor inconvenience; it's your vehicle telling you something in the fuel system is failing. For many DIY mechanics and shop techs, the culprit turns out to be a cracked or brittle fuel line: a repair put off because the right parts are hard to find, or because you bought the wrong kit and fails within a season.
We will explain what separates a high-pressure fuel line repair kit from a generic replacement, which materials hold up under real-world heat and pressure cycles, and which products from Shop Saver Express are worth having on the shelf before you ever need them.
Why Fuel Line Material Determines How Long Your Repair Lasts
Most fuel line failures are not sudden blowouts. They develop slowly. Plastic becomes brittle after years of heat cycling, nylon develops micro-cracks near quick-disconnect connectors, and steel lines corrode from the outside while ethanol-blended fuels attack the interior.
The material your repair line is made from determines whether you are solving the problem for two years or twenty.
Modern fuel systems operate at injection pressures between 40 and 80 PSI for port-injected engines, and significantly higher for direct injection systems. A repair rated for garden-hose pressure has no business anywhere near a fuel rail. That gap between what a cheap splice can handle and what your fuel pump actually generates is where leaks - and fires - happen.
Here is how the three most common repair line materials compare in real service:
| Material | Pressure Rating | Heat Resistance | Corrosion Resistance | Best Use |
|---|---|---|---|---|
| Standard rubber | Low (20-30 PSI) | Moderate | Poor | Return lines only |
| Nylon (polyamide) | Medium-high | Good | Excellent | Feed and return lines |
| Steel with zinc coating | High | Excellent | Very good (RoHS zinc) | High-pressure feed lines |
Restriction of Hazardous Substances (RoHS)-compliant yellow zinc plating on steel lines, the finish you'll see on the 5/16" Fuel Line Repair Kit, is not just cosmetic. It indicates the line meets RoHS standards, which matters in states with stricter emissions and disposal requirements. It also signals a corrosion-resistant surface treatment designed to outlast bare or grey-zinc steel alternatives.
The takeaway: if you are repairing a pressurized feed line, nylon or steel is the minimum. Rubber belongs on low-pressure return lines only.
How to Choose the Right Fuel Line Repair Kit for The Job
The two most common fuel line diameters you'll encounter on domestic cars and light trucks are 5/16" and 3/8". Getting this wrong wastes an afternoon and risks an incomplete seal.
Measure the outside diameter of your existing line before ordering. Not the inside, and not by eyeballing.
A tubing caliper or a small set of drill bits used as no-go gauges will give you a reliable reading in under a minute. Manufacturers standardized on 5/16" for return lines and 3/8" for main feed lines on most applications from the 1980s onward, but there are exceptions on import vehicles and pre-1985 trucks.
The 5/16" Kit: Built for Tight Bends and Secondary Lines

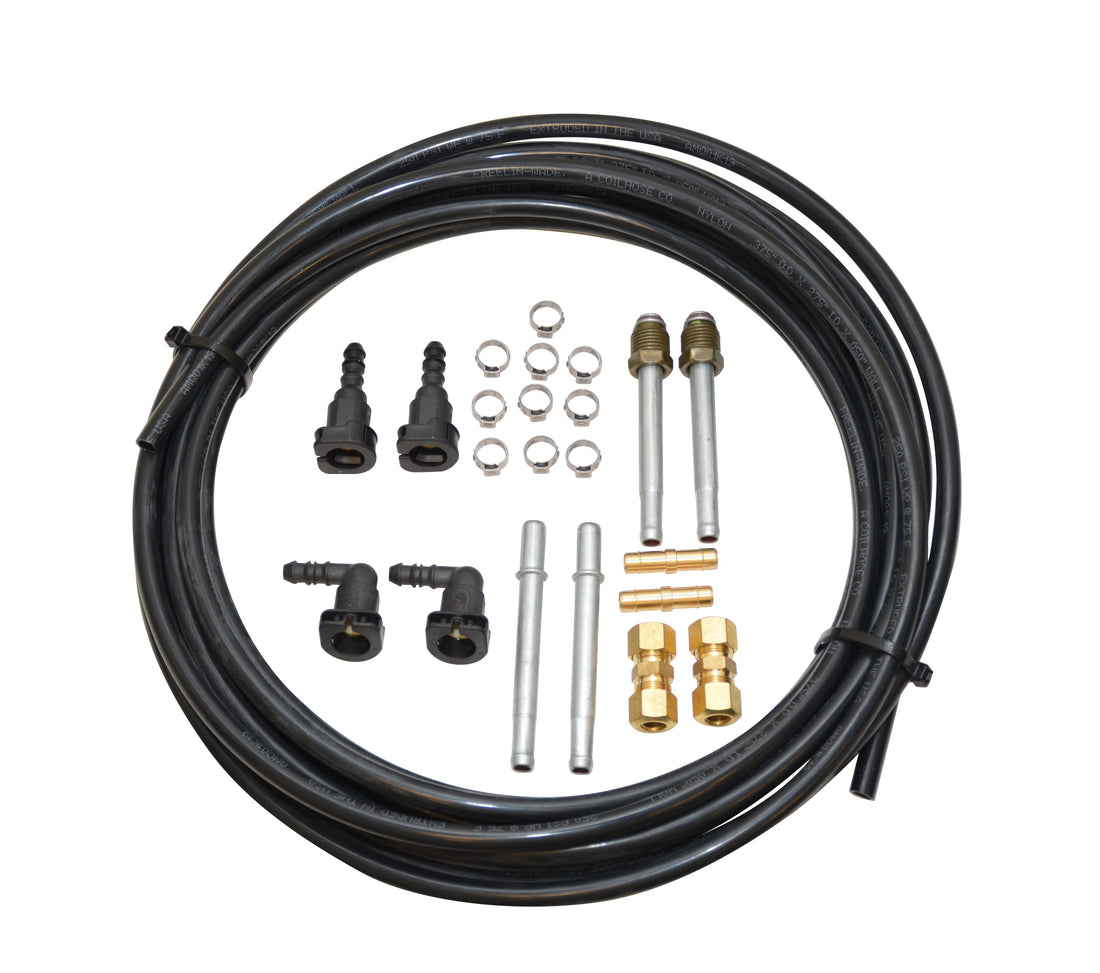

The 5/16" Fuel Line Repair Kit with RoHS Yellow Zinc comes with 25 feet of nylon fuel line. That length matters more than you think. When you are routing around a frame rail or avoiding an exhaust component, having extra line to work with means you can run a clean route instead of a taut line under tension fatiguing at the fittings over time.
The zinc finish on this kit outperforms bare steel in salt-spray testing and is the correct choice for any vehicle driven in regions using road salt. If you've ever seen a repair line with rust blooms developing within two winters, this upgrade prevents that.
The 3/8" Kit: The Workhorse for Main Feed Lines
The 3/8" Fuel Line Repair Kit, at 25 feet, covers the majority of main feed line repairs on full-size trucks, SUVs, and older domestic cars. It's priced to make a full-length replacement practical rather than just a sectional splice.
A sectional splice is almost always the wrong call on a feed line. If one section of a factory steel line rusted or cracked, the adjacent sections might be too. Replacing the damaged foot and leaving the rest is a six-month repair disguised as a fix.
When to Use the 86-Piece Assortment
A shop servicing a mixed fleet (or a serious DIY mechanic working on multiple vehicles) benefits more from the Fuel Line Repair Parts Assortment (86 Total Pieces) than from buying individual kits, vehicle by vehicle. For 86 pieces, the per-repair cost drops significantly once you work through two or three jobs.
The assortment covers retainer clips, splice joiners, quick-connect fittings, and compression unions – the full range of hardware you need when you start a job and find the damage is more extensive than the initial estimate.
The Components That Actually Create a Leak-Free Seal
Choosing the right tube is half the repair. The fittings, connectors, and joiner hardware you use to transition between the new line and the factory connections determine whether your repair stays leak-free or starts seeping within a few heat cycles.
The weakest point in any fuel line repair is almost always the connection, not the line itself.
Here is what each component type in the Shop Saver Express lineup is designed to do:
Quick-Disconnect Fittings
The Straight Quick Disconnect Fuel Line in 3/8" and 5/16" versions are the push-lock fittings that engage the retaining tabs on fuel rails and filter housings. These were designed for installing once and left alone: the internal locking geometry creates a higher withdrawal force than a hose clamp ever will.
For lines needing to route around obstacles, the 90-Degree Quick Disconnect Bend Fuel Line in 3/8" solves the most common access problem in tight engine bays: getting a sealed connection at the fuel rail when intake manifold hardware blocks the straight approach.
Transition Fittings: Nylon to Steel
One of the more frustrating repairs involves connecting a new steel or nylon section to an OEM nylon line; two materials using different connection geometries. The Nylon to Steel Quick Connector Fuel Line handles this transition cleanly, without improvised adapters or step-down fittings compromising the seal diameter.
GM vehicles from the mid-1990s through the 2000s are particularly common candidates here. The GM Nylon or Rubber Quick Connector Fuel Line is the correct fit for those applications.
Splice Joiners for Sectional Repairs
When there is localized damage, a section cracked by road debris for example, a Nylon Fuel Line Splice Joiner or Rubber Fuel Line Splice Joiner allows you to cut out the damaged section only and restore continuity. For return lines and low-pressure applications, this is a clean and cost-effective repair. For high-pressure feed lines, splice only if you have confirmed the rest of the line is in sound condition.
Viton O-Rings: Small Part, Critical Function
Viton O-Ring Fuel Line fittings are worth calling out specifically. Viton, a fluoroelastomer, resists petroleum fuels, ethanol blends, and high temperatures far better than standard Buna-N (nitrile) rubber. A 15-cent O-ring made from the wrong compound can fail and create a leak at a fitting looking completely secure from the outside. When rebuilding a connection under the hood, always replace the O-ring with Viton, not whatever came out.
Three Mistakes That Turn a Simple Repair Into a Return Trip
Even with the right parts, these errors show up consistently in forum threads and shop diagnostics.
Mistake 1: Not depressurizing the system before cutting into the line.
The fuel pump maintains system pressure even with the engine off. Remove the fuel pump fuse, crank the engine until it stalls from fuel starvation, then proceed. Skipping this step on a 60 PSI system means fuel in the face when you make the first cut.
Mistake 2: Using a pipe cutter on a nylon line.
A rotary pipe cutter deforms the tube end inward as it cuts, which prevents a proper snap engagement with push-lock fittings. Use a sharp utility knife and a straight-edge to get a clean, square cut.
Mistake 3: Not supporting the repaired line every 18-24 inches.
A fuel line hanging unsupported will vibrate against adjacent components and perish around the fittings within 12 to 18 months. Use proper line clamps or cable ties at regular intervals. The repair might hold static pressure on the bench and still fail in service from vibration alone.
A Practical Word on Repair vs. Full Replacement
Consider two scenarios mechanics see regularly. First, the damage is a single, cracked section on a vehicle with 80,000 miles and otherwise healthy lines. A sectional repair with quality fittings is entirely appropriate. In the second, a 15-year-old truck from the rust belt with visible surface corrosion on the steel lines running the length of the frame rail. Patching the visible crack leaves a dozen potential failures in place. Full-length replacement with 25-foot kits is the only repair worth doing.
The cost difference between patching and replacing is often $30 to $50 in parts. The cost of towing after a patch fails on a highway is, as you know, way more.
For shops, having the 86-piece assortment on hand covers both scenarios without running to the parts store mid-job.
Get the Right Kit Before You Need It
A fuel line failure rarely announces itself with convenient timing. Having a 3/8" Fuel Line Repair Kit and a selection of quick-disconnect fittings on the shelf means you are diagnosing and repairing on the same afternoon instead of waiting two days for parts to arrive.
Browse the full Fuel Lines & Fittings collection at Shop Saver Express to find the right kit for your application, and pick up a set of Viton O-rings while you're there.
