Why 5/16” Fuel Line Repair Kits Are Ideal for Quick Fuel Line Fixes
A cracked or corroded 5/16" fuel line does not give much warning. One day your engine smells like raw gasoline at idle; the next, you’re parked on the side of the road watching a small puddle form under your vehicle. That moment: no line or fittings nearby and the supplier quoting a two-day turnaround, is exactly the situation a proper fuel line repair kit is designed to prevent.
Most fuel line failures on domestic cars, trucks, and light-duty vans involve 5/16" diameter lines. This is the Original equipment Manufacturer (OEM) standard size for carbureted engines and low-pressure return lines across decades of American and imported vehicles. If you own a vehicle built between the mid-1970s and the early 2000s, there’s a strong chance your primary fuel delivery line is 5/16".
Here we will explain why a 5/16” fuel line repair kit is the right tool for the job, what components a quality kit should include, when to reach for a splice joiner versus a full section replacement, and which products from Shop Saver Express cover every scenario you are likely to face.
What Makes 5/16" the Standard Size for Most Passenger Vehicles
Walk into any forum dedicated to classic Mustangs, vintage trucks, or early GM platforms and the same question appears repeatedly: should I use a 5/16" or 3/8" fuel line?
The short answer is this: match the diameter of the line you are replacing.
5/16" is the factory specification for the majority of carbureted engines and Electronic Fuel Injection (EFI) return lines running below roughly 200 horsepower. The mathematics behind the sizing is straightforward - a 3/8" line carries approximately 44% more fuel by volume than a 5/16" line due to the relationship between pipe radius and cross-sectional area. That extra capacity matters if you’re running a high-output modified engine. For a stock daily driver or a light truck, it is unnecessary and creates fitting compatibility problems when your existing tank, pump, and filter connections are all built around 5/16".
The practical consequence: when a 5/16" line develops a rust spot, crack, or pinhole (typically in the section exposed to road salt and debris near the frame rail), you need a 5/16" repair kit, not a 3/8" one.
Forcing an oversized line over an undersized fitting, or vice versa, is the source of half the fuel leaks reported in automotive forums. It is not a shortcut; it is a liability.
What a Complete 5/16” Fuel Line Repair Kit Should Always Include
Not all kits are equal. A repair that holds under driveway pressure testing but fails at highway operating pressure (typically between 4 and 8 PSI for carbureted systems) is worse than no repair at all because it creates false confidence.
A full-coverage 5/16" repair kit needs to handle straight runs, 90-degree bends, nylon-to-steel transitions, and GM-style quick connector applications without requiring a separate trip to the parts store.

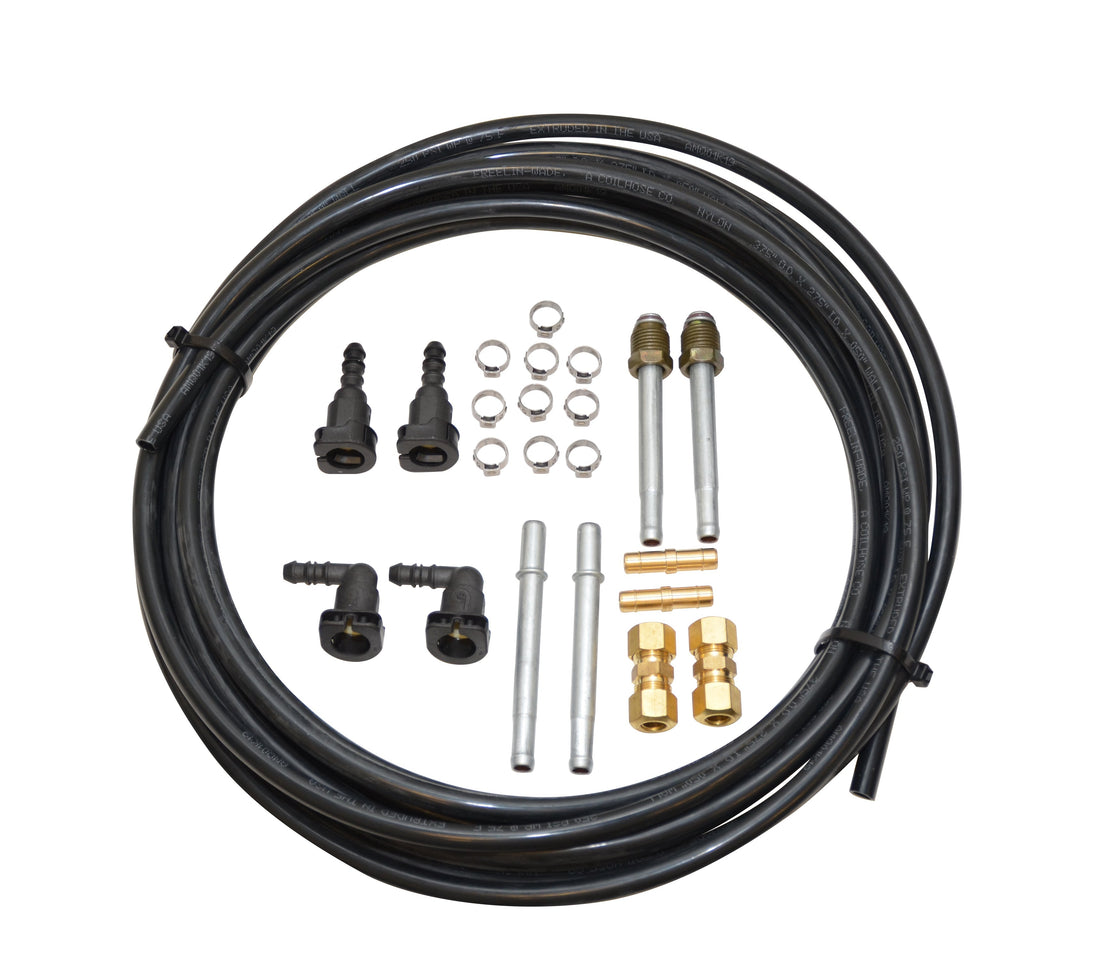

The 5/16" Fuel Line Repair Kit is built around that logic. It includes 25 feet of Restriction of Hazardous Substances (RoHS) yellow zinc 5/16" fuel line, two 90-degree quick disconnects, two straight quick disconnects, two 5/16" nylon-to-steel union fittings, two 5/16" quick connect steel-to-nylon adapters, two GM-to-nylon or rubber connectors, two 5/16" nylon-to-nylon barbed joiners, and 10 compression clamps. That is everything in one box!
Here is why each component earns its place:
| Component | Why It Matters |
|---|---|
| 25 ft. fuel line coil | Covers full runs, not just patches |
| 90-degree quick disconnects | Handles routed lines near tight bends |
| Straight quick disconnects | Standard inline connection points |
| Nylon-to-steel unions | Bridges OEM steel sections to replacement nylon |
| GM quick connectors | Covers the most common domestic trucks |
| Compression clamps | Secures every barbed joint against vibration |
If your vehicle uses 3/8" lines (common on larger V8 platforms and high-output engines) Shop Saver Express also stocks the 3/8" Fuel Line Repair Kit, which follows the same complete-coverage approach with 25 feet of line.
How to Use a 5/16” Repair Kit: Step-by-Step for a Bay Fix
What’s the appeal of a kit like this? Speed. A technician who has done this repair a few times can replace a corroded section like this in under 30 minutes. Here’s the trick:
Step 1: Locate and isolate the damage. Smell is your first indicator. Inspect the fuel line from the tank forward, paying particular attention to sections running along the frame rail and near heat sources. Mark the damaged section with tape at least 2 inches beyond any visible corrosion on both sides.
Step 2: Relieve fuel system pressure. On fuel-injected vehicles, locate and remove the fuel pump fuse, then crank the engine briefly to bleed the line. On carbureted vehicles, simply clamping the line upstream is sufficient. Never cut a pressurized fuel line.
Step 3: Cut out the damaged section. Use a clean tubing cutter rather than a saw or snips for a square, burr-free end. A jagged cut is the number one cause of a fitting not sealing.
Step 4: Select the correct fitting. If you are joining nylon to nylon, use the Nylon Fuel Line Splice Joiner from Shop Saver Express.
For a nylon-to-steel transition, use the Nylon to Steel Quick Connector Fuel Line.
For a GM platform, the GM Nylon or Rubber Quick Connector covers push-button release connections specific to those vehicles.
Step 5: Measure, cut, and push-fit the replacement section. Cut a length of 5/16" nylon line from the coil to span the gap plus 1.5 inches on each side for fitting insertion. Push each fitting barb firmly into the line until the shoulder fully seats. Install and tighten the compression clamps.
Step 6: Pressure-test before driving. Restore fuel system pressure, check every joint visually for 60 seconds with the engine running, and recheck after a 10-minute drive.
The entire repair uses no heat gun, no flare tool, and no specialty equipment beyond a tubing cutter and a basic wrench.
Common Mistakes That Turn a 30-Minute Fix Into a Repeat Job
This is where most DIY fuel line repairs fail. Not at the diagnosis stage, but at execution.
Skipping the Viton O-ring. Every push-fit connection point on a steel quick connector relies on a small O-ring to achieve a seal. If you are reusing an existing steel fitting, also replace the O-ring. Shop Saver Express sells individual Viton O-Rings for Fuel Lines way cheaper than a callback repair. Viton (a fluoroelastomer material) resists gasoline, diesel, and ethanol blends better than standard rubber.
Using the wrong splice joiner material. Rubber splice joiners work well for low-pressure carbureted systems. For EFI systems where line pressure can spike above 40 PSI, choose nylon. Both the Nylon Fuel Line Splice Joiner and the Rubber Fuel Line Splice Joiner are available individually at Shop Saver Express so you can match the application precisely.
Patching when you should replace. If the line shows surface corrosion in one spot, assume the adjacent sections are compromised too. The 25-foot coil in the repair kit exists for a reason. Replacing 18 inches of line takes the same time as splicing 6 inches, and it does not leave a corroded section waiting to fail in three months.
Routing near heat sources. Nylon fuel line has excellent chemical resistance but keep it clear of exhaust manifolds and catalytic converters. Always secure the repaired section with the provided clamps and use existing factory routing clips wherever possible.
When Individual Components Beat a Full Kit
A full repair kit is the right call when you do not know the exact failure point yet, or when you are stocking a shop bay for quick-turn fuel line work.
If you already know what you need - say, a single straight connector to bridge a failed factory quick-disconnect - buying individual components is faster and more cost-effective. Shop Saver Express stocks several standalone options that pair directly with the 5/16" system:
- 90-Degree Quick Disconnect - 3/8" for those needing bend fittings in a mixed-diameter repair
- Fuel Line Sending Unit Repair Line - 3/8" Tube for sending unit connections
- Steel Fitting and O-Ring Repair Line - 3/8" for steel section repairs with a 16mm hex
For shops managing a high volume of fuel system work across mixed vehicle platforms, the Fuel Line Repair Parts Assortment - 86 Total Pieces consolidates every connector type into a single organized case that stays in the bay.
The Right Kit, Ready When You Need It
The reason a 5/16” fuel line repair kit belongs in every shop and serious DIY toolbox is simple: fuel system failures do not schedule themselves around shop hours.
The Shop Saver Express Fuel Lines and Fittings collection covers the full spectrum, from an O-ring saving a good fitting to a complete 86-piece assortment for high-volume service bays. The 5/16" repair kit gives you enough material and fittings to complete multiple repairs with one kit.
Do not wait until you are stuck with a filled service bay. Stock the right kit before your bays fill up.
