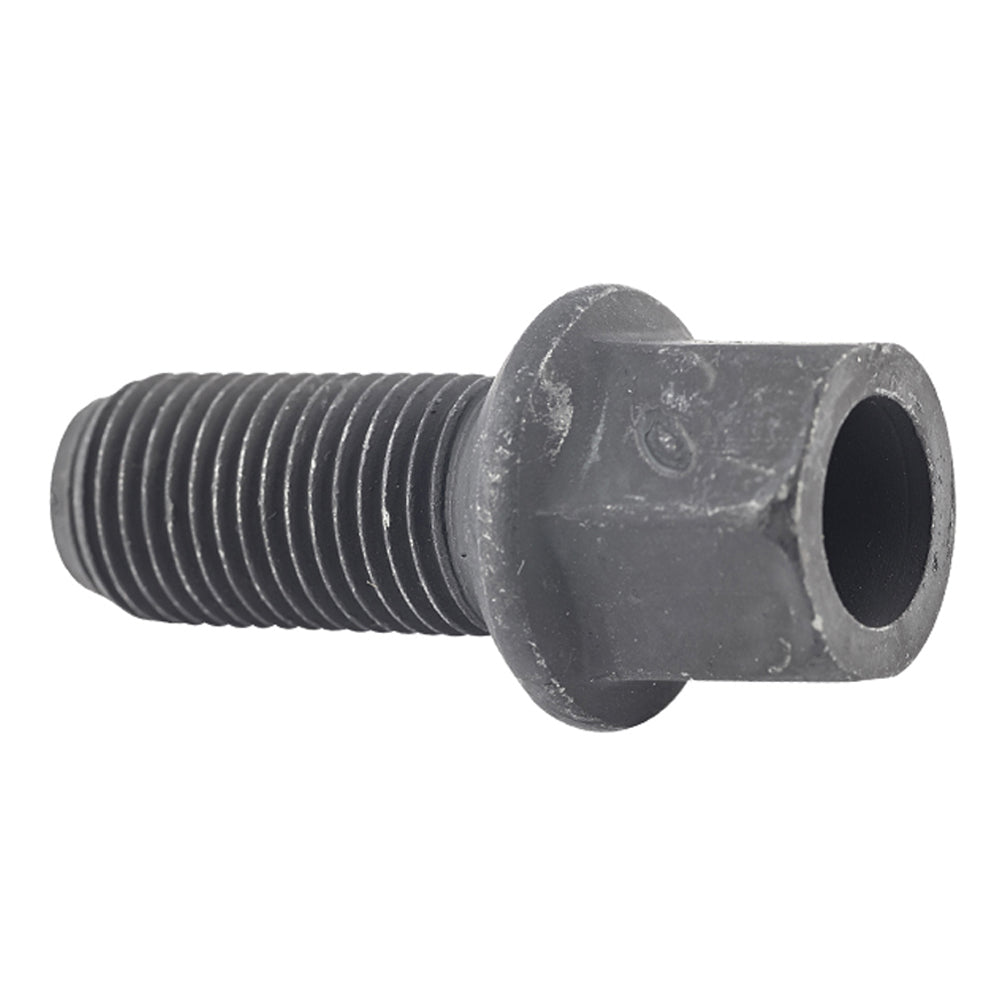

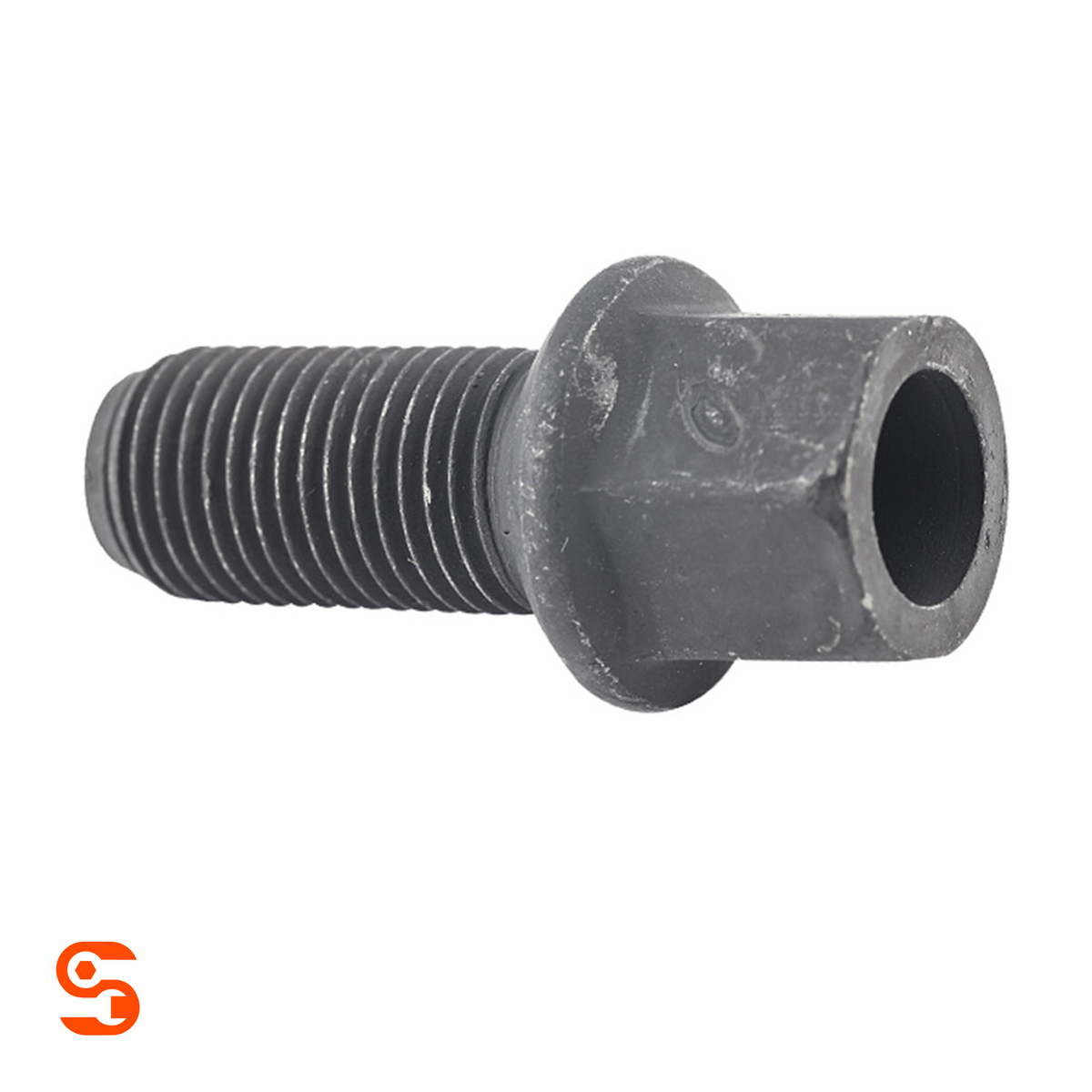

Steel Wheel Bolt | Style: Hex Head | Grade: 8 | Thread: M14x1.50 | Length: 26mm | Hex: 17mm

Replace a damaged or missing compatible wheel bolt with this Grade 8 steel hex-head bolt. It features an M14x1.50 thread, 26mm length, and 17mm hex head.

Wheel bolts thread directly into the hub rather than pairing a pressed-in stud with a separate lug nut. Confirm thread pitch, length, seat style, vehicle application, and manufacturer torque specifications before installation.

Specifications

• Style: Hex head wheel bolt
• Grade: 8
• Thread: M14x1.50
• Length: 26mm
• Hex Size: 17mm
• SKU: WS-318-B

Frequently Asked Questions

Q: What's the difference between a wheel bolt and a wheel stud?
A: A wheel bolt threads directly into the hub, while a wheel stud remains fixed in the hub and uses a separate lug nut.

Q: What does Grade 8 mean?
A: Grade 8 is a high-strength steel classification with greater tensile strength than standard Grade 5 hardware — important for a fastener carrying wheel and vehicle load.

Q: What hex size does this bolt use?
A: 17mm.
